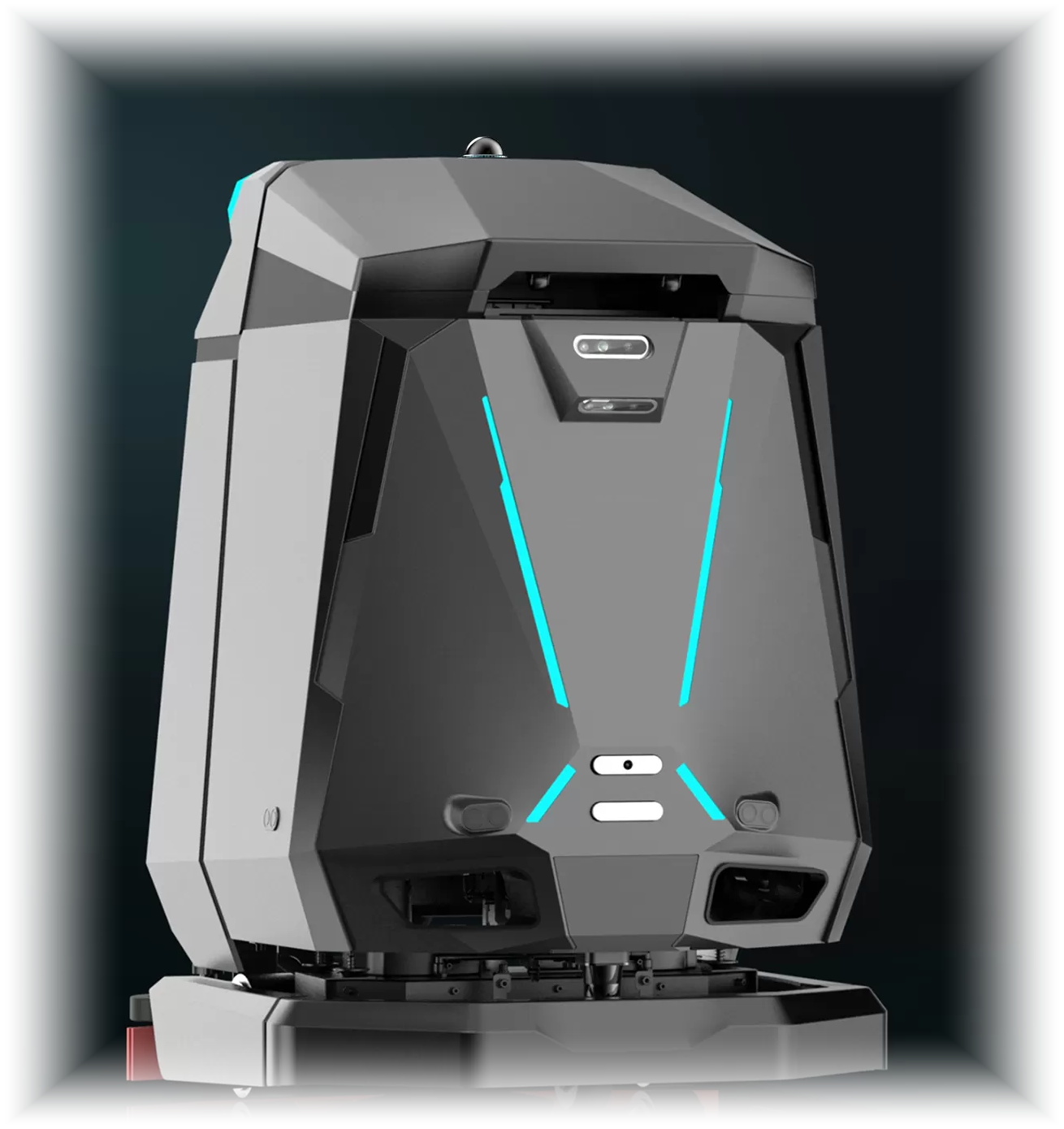

Built for large hard-floor areas — shopping malls, hospitals, office towers, supermarkets and transit hubs. Choose the combined sweep-and-scrub version or the dedicated scrubber, with a dual-brush option. One-hour workstation charging and up to 29 kg of brush pressure keep a full shift running.
The same chassis serves two jobs: a combined sweep-and-scrub version and a dedicated scrubber, plus an optional dual-brush build. With a 500 mm cleaning width and 1,800 m²/h coverage, it covers everything from daily dust mopping to deep scrubbing.

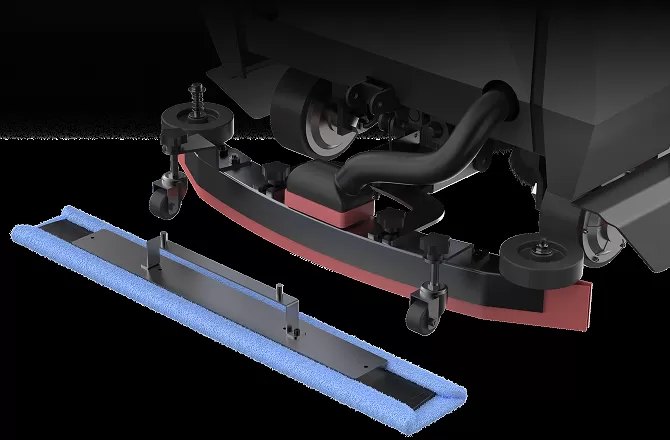

Switch between dust mopping and scrubbing without changing machines — one pass handles routine cleaning on mixed flooring in malls and office buildings.

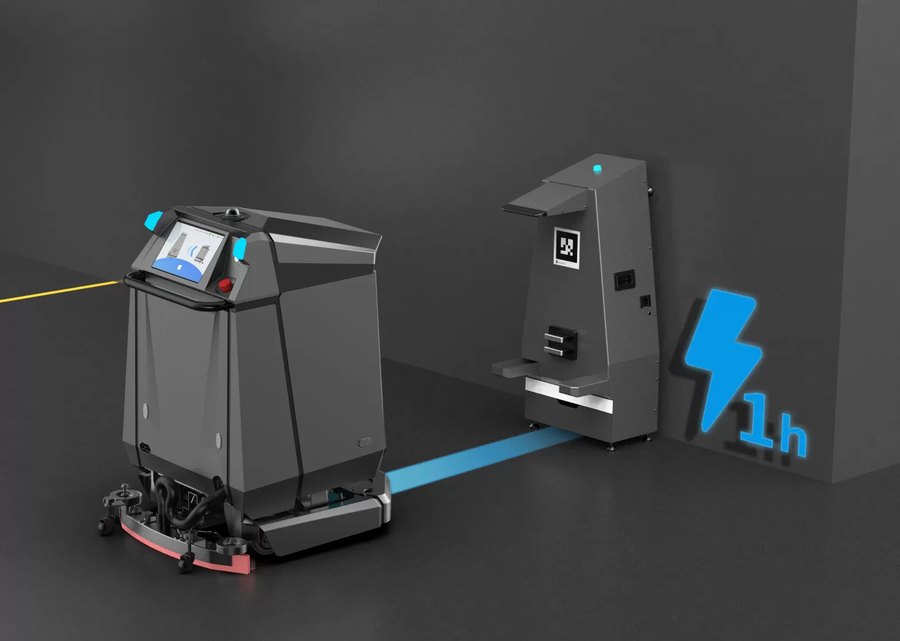

For heavily soiled floors and high-frequency schedules. Paired with the 1-hour fast-charge workstation, downtime shrinks and productive hours expand.

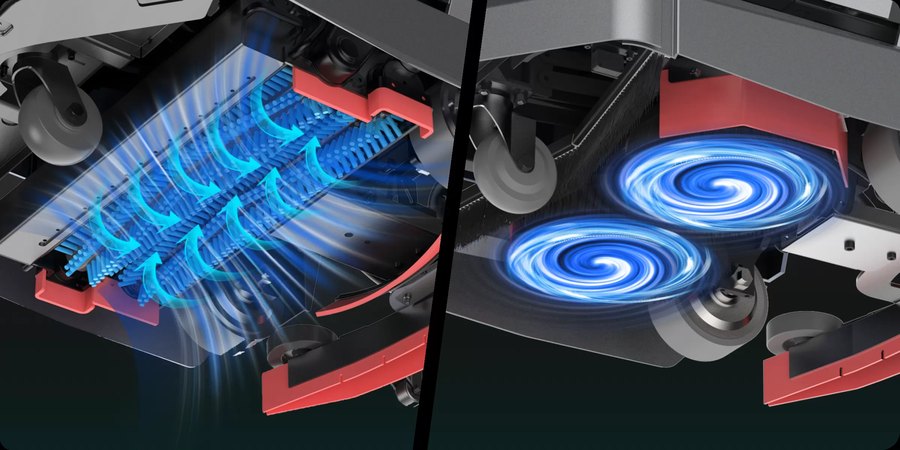

Two brush decks widen coverage per pass, built for large areas that run continuously. Specified per project.
A pathfinder and a guide. GBS-Q-030 puts navigation, perception, scrubbing and cloud operations into one system, so cleaning moves from labour-driven to data-driven.

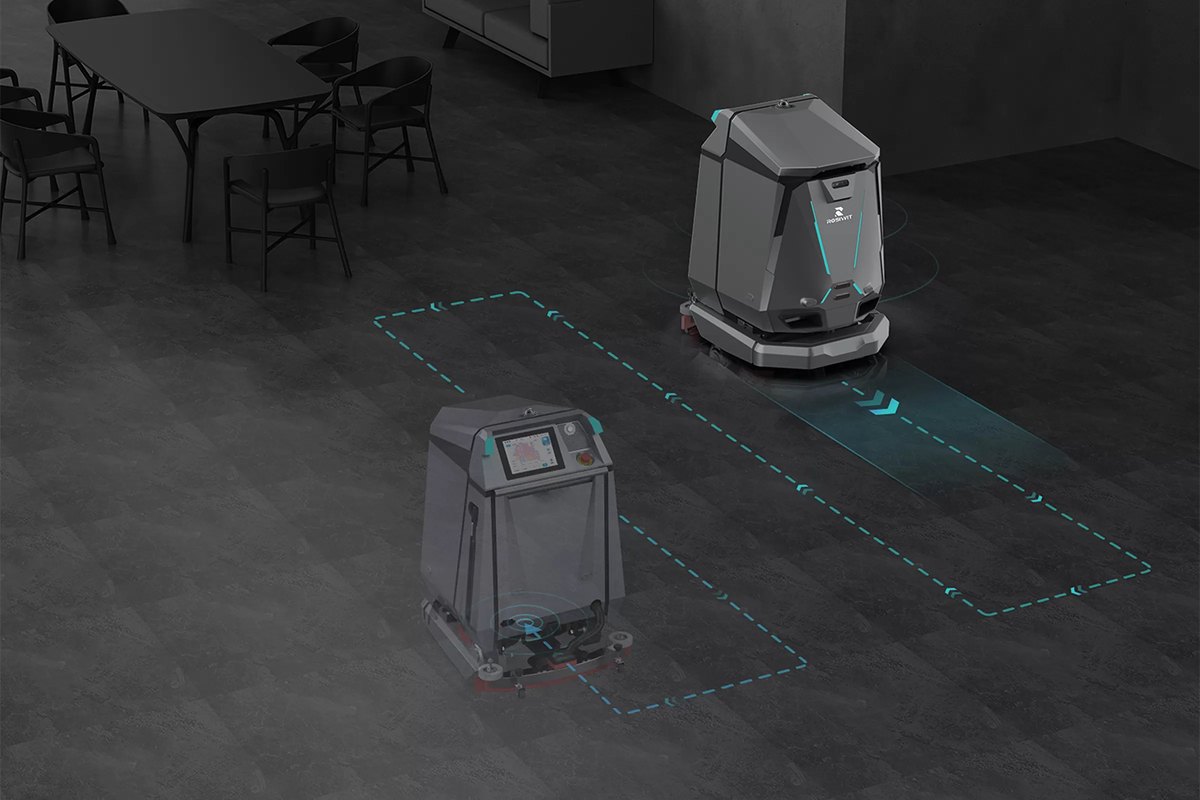

Route management and zone-based cleaning lift throughput, while virtual walls and no-go zones keep the machine where it belongs.

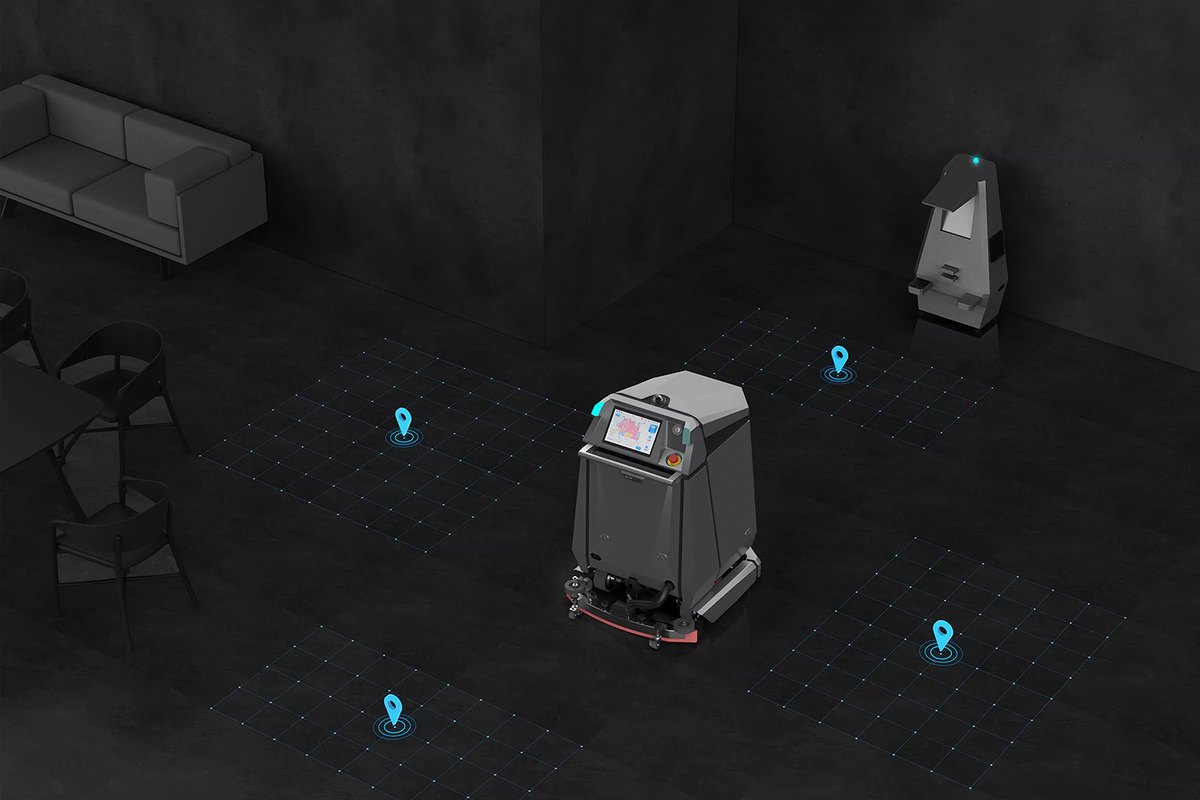

SLAM, LiDAR and localisation algorithms sharpen both accuracy and execution.

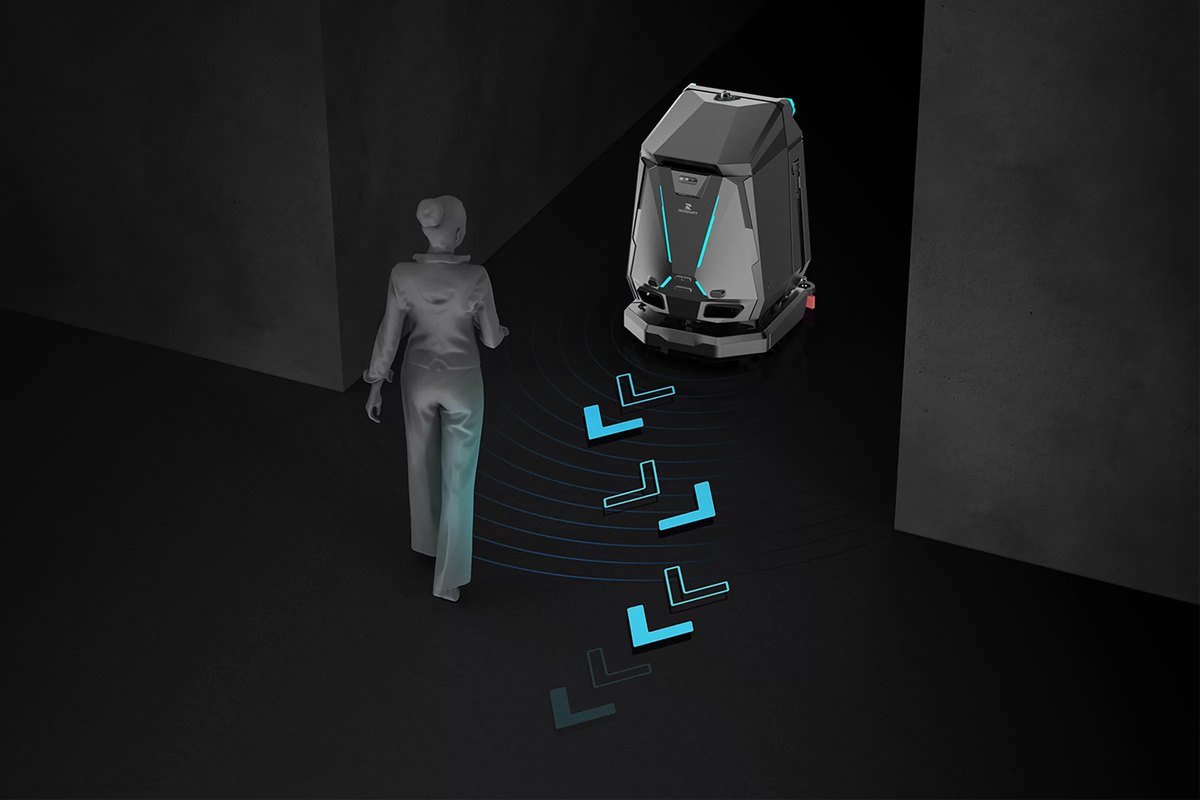

Flexible bypass, automatic stop, audible alerts and cloud upload of cleaning data — steady even in crowded areas.
Multisensor fusion with sensors arranged in a 360° ring. Stereo cameras for collision and drop-off prevention widen the field of view.
Three cleaning levels set by floor condition; dust mopping and scrubbing switch in one touch.

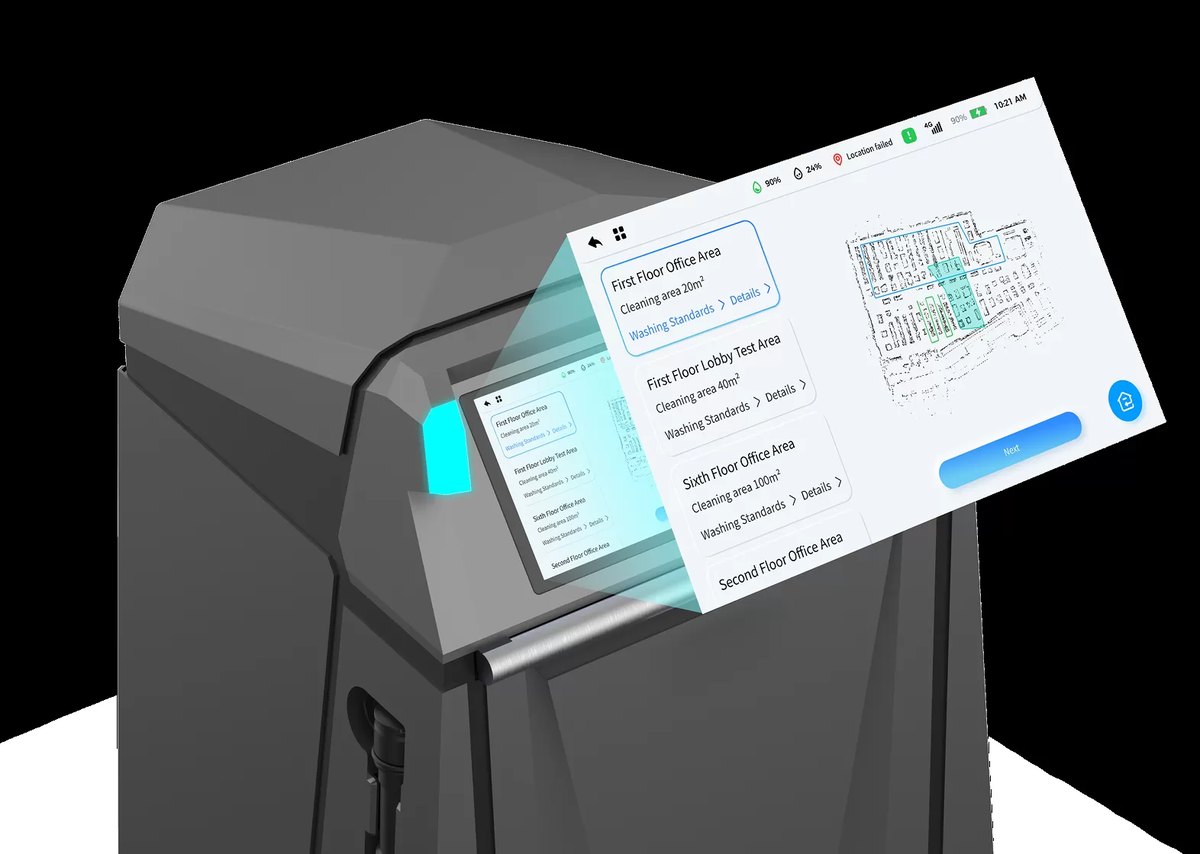

A simplified interface with no complex setup — the Quick Task button restarts the last route in one press.

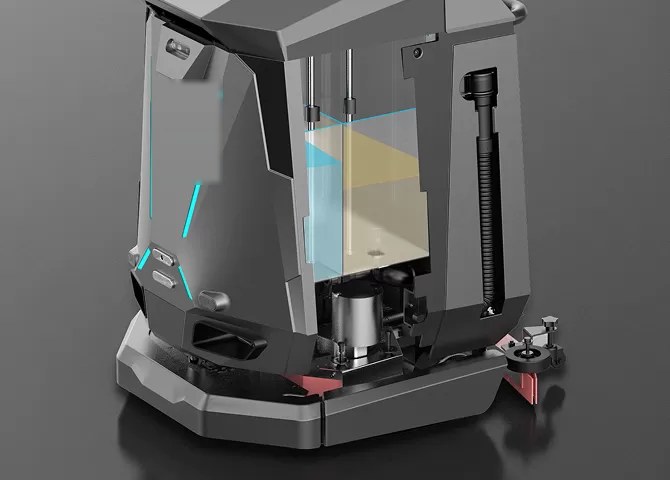

40 L clean and 36 L recovery tanks; up to 10 hours in dust-mopping mode and 3.5 hours scrubbing.

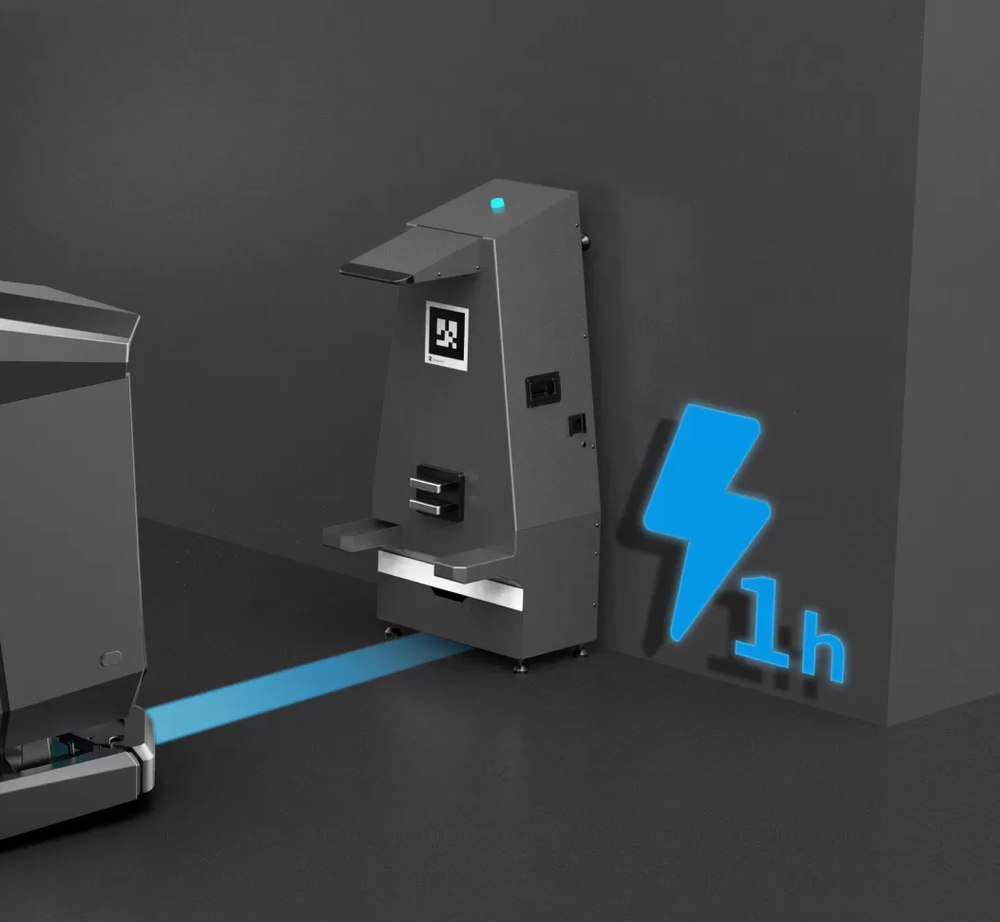

One hour at the workstation (3 hours on standard charging) adds productive hours to every shift.

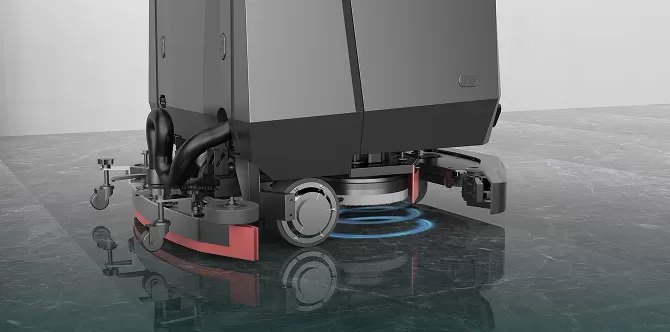

Brush speed up to 270 RPM, with high down pressure to lift stubborn soil fast.
Rows run from cleaning performance to cleaning hardware, then runtime and energy, then structure and operation — so the table can be checked line by line against a site survey.
| Item | GBS-Q-030 Industrial floor cleaning robot · combined sweep & scrub / dedicated scrubber |
|---|---|
| Cleaning width | 500 mm |
| Coverage rate | 1,800 m²/h |
| Cleaning modes | Dust mopping, scrubbing (2 modes) |
| Cleaning levels | 3 levels, adjustable to floor condition |
| Brush speed | Up to 270 RPM |
| Down pressure | Up to 29 kg |
| Clean / recovery tank | 40 L / 36 L |
| Runtime (mopping / scrubbing) | 10 h / 3.5 h |
| Charging time1 h at the workstation; 3 h standard charging | 1 h |
| Operating noise | <70 dB |
| Dimensions (L×W×H) | 908 × 706 × 1089 mm |
| Versions | Combined sweep & scrub / dedicated scrubber; dual-brush optional |
| Navigation & sensing | SLAM + LiDAR localisation, 360° multisensor ring, stereo collision and drop-off cameras |
| Smart functions | Route management, zone cleaning, virtual walls and no-go zones, automatic stop and bypass, cloud data upload |
*1 Figures compiled from published product information. Runtime and coverage vary with floor type, soil level and operating mode. *2 Unit weight, battery capacity, climbing and obstacle performance, and ingress protection follow the machine’s technical documentation — confirm with a CNGBS engineer before quoting these in a tender.
Version and brush configuration combine on one platform to match different floor types and soil levels.

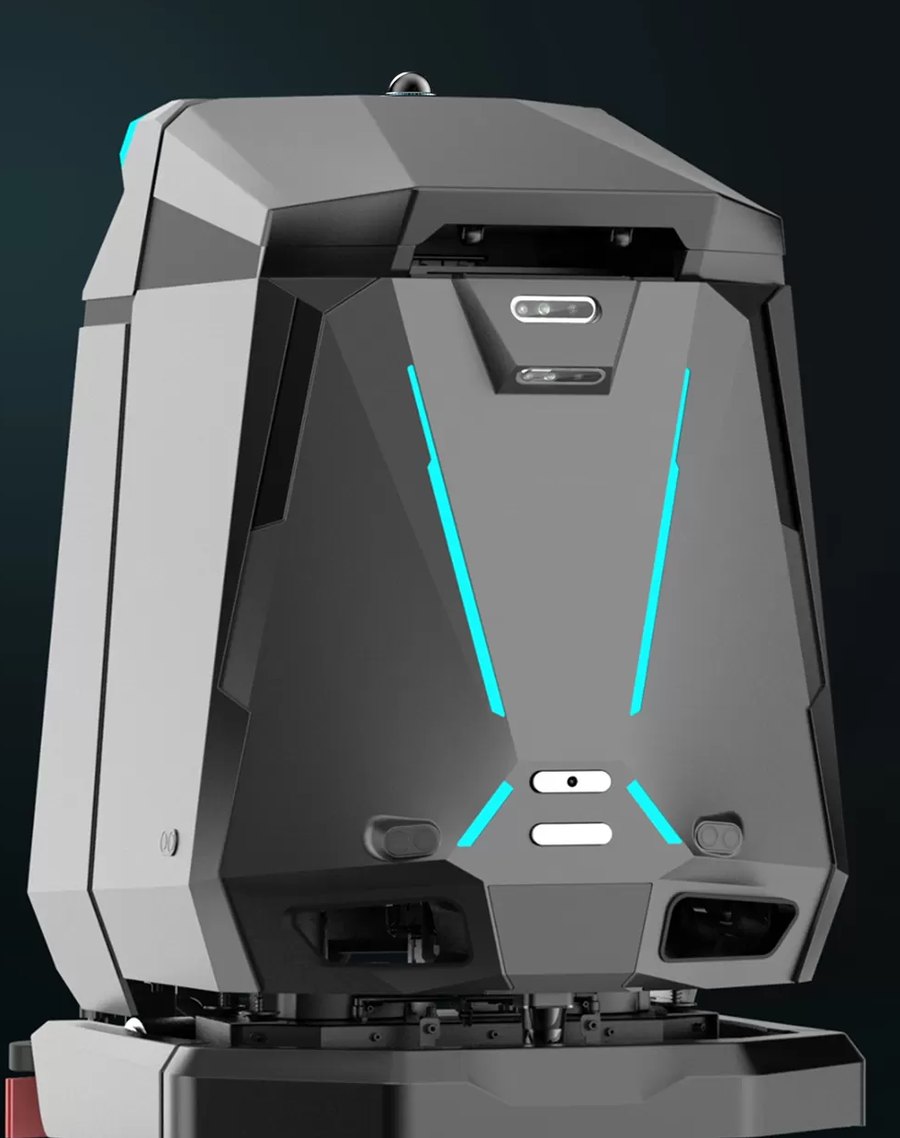

The general-purpose option for deep cleaning: dust mopping and scrubbing switch freely, two operations in a single pass.
For heavily soiled and high-traffic floors, with reinforced scrubbing and down pressure for supermarkets and transit hubs.
Two brush decks raise cleaning coverage and throughput on large sites that run continuous shifts.
Hard flooring, heavy footfall, high cleaning frequency — that is where GBS-Q-030 earns its keep.

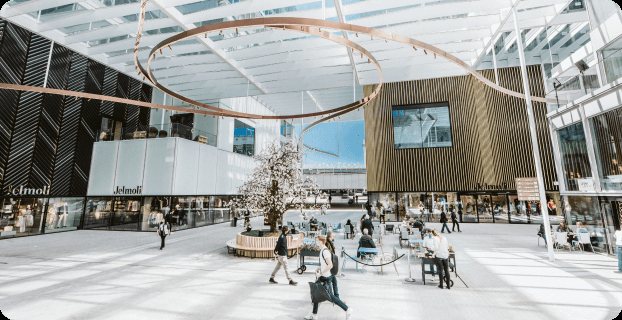

Shopping malls

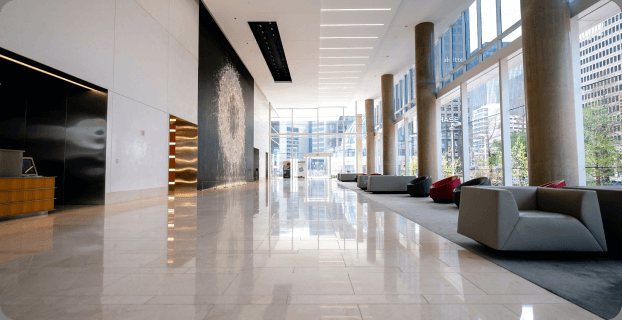

Office towers

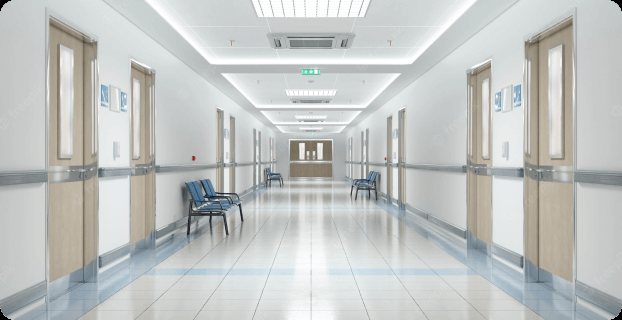

Hospitals
Offices

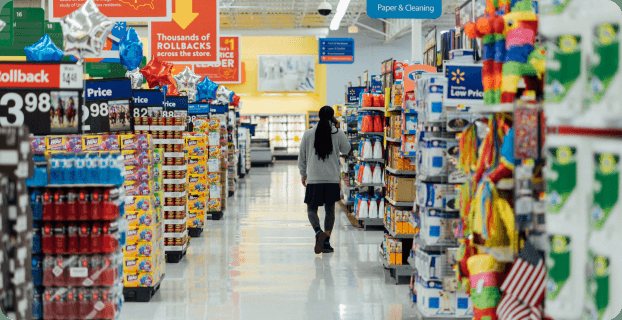

SupermarketsSend us the floor area, floor type and cleaning frequency. CNGBS will size the machine, plan workstation locations and single-unit coverage, and advise on the dual-brush option.
