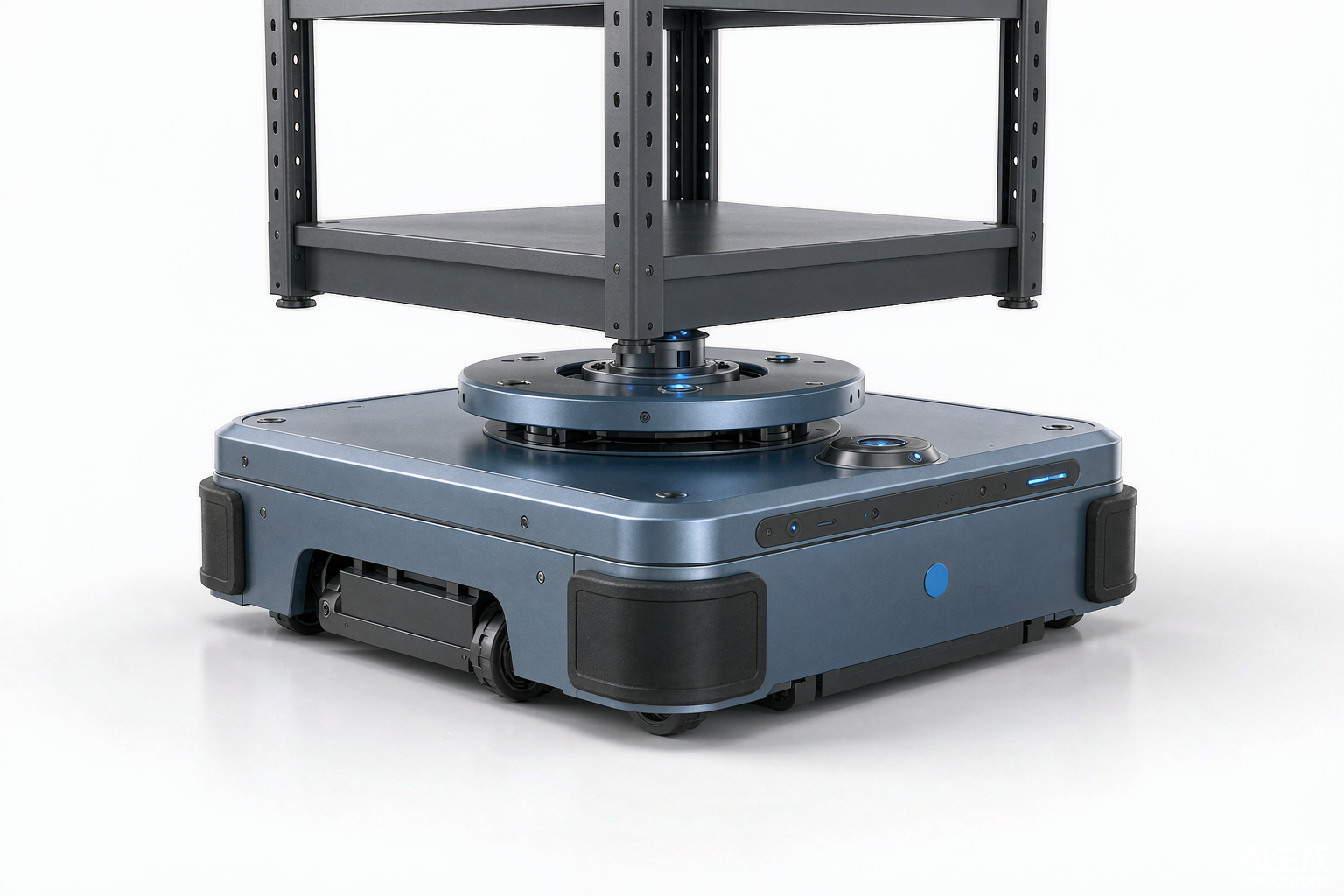

The robot slips beneath a rack or trolley, lifts it automatically, and delivers materials precisely to target stations. A fleet of robots is orchestrated by the TCS (Task Control System), which assigns tasks according to route planning and traffic rules — waiting at congested nodes and passing through only when clear, enabling dense, fully unmanned fleet coordination across factories, warehouses, and logistics facilities.
Rated payloads from 150kg to 600kg on one common dispatching system and one deployment toolset — scale your fleet to match throughput demand.
A compact body that glides through narrow aisles — ideal for line-side feeding and light point-to-point delivery.
The workhorse balancing capacity and maneuverability — for inter-line transfer, WIP shuttle, and warehouse-to-line delivery.
Built for heavy line-side feeding and mold & fixture transport, with a large lifting plate compatible with standard and wide racks.
Powered by the TCS (Task Control System): tasks are generated and auto-assigned according to route planning and traffic rules. Robots wait at congested nodes and are released as needed — smooth multi-robot coordination for dense, multi-task operations.
Trusted across 3C electronics, semiconductor, precision instruments, food & beverage, and pharmaceutical manufacturing.
Raw materials and WIP delivered to line-side stations on takt — replacing manual shuttle runs for uninterrupted production.
High-frequency fixed-route transfers for inbound raw materials and finished goods, integrating seamlessly with WMS/MES/ERP.
Scheduled, fixed-route sample delivery with combinable multi-compartment modules — clean and compliant.
Dense fleet coordination for sorting and transfer, with parallel multi-task dispatching to boost facility throughput.
Typical configuration below; individual items can be customized to project requirements.
| Item | GBS-IBEN-A11 | GBS-IBEN-A12 | GBS-IBEN-A13 |
|---|---|---|---|
| Structure | Top-lifting type (chassis submerges under the carrier; lifting plate carries racks/trolleys) | ||
| Rated Payload | 150 kg | 300 kg | 600 kg |
| Lift Stroke | 50 mm | ||
| Positioning Accuracy | ±10 mm / ±0.5°under laser SLAM + QR-code hybrid navigation | ||
| Navigation | Laser SLAM; QR-code, reflector and magnetic-tape navigation supported | ||
| Drive | Dual-wheel differential; bi-directional travel (forward / reverse / in-place turn) | ||
| Max Speed | 1.5 m/s unloaded · 1.0 m/s loaded | ||
| Gradeability | ≤3° (flat floor, free of oil/dust; surface unevenness ≤5mm) | ||
| DimensionsL × W × H, typical | 900 × 500 × 290 mm | 920 × 580 × 300 mm | 1050 × 680 × 320 mm |
| Self Weightincl. battery | ≈120 kg | ≈140 kg | ≈180 kg |
| Battery | 48V LiFePO₄; online charging and manual battery swap supported | ||
| Runtime | ≥8 h (typical duty cycle) | ||
| Charging | Automatic / manual; charge time ≤2 h | ||
| Communication | Wi-Fi (2.4G / 5G); 4G optional | ||
| Safety | Lidar obstacle avoidance + front/rear contact bumpers + emergency stop button | ||
| Operating Environment | 0℃ ~ 50℃ · 10% ~ 90% RH (non-condensing) | ||
| Dispatching | TCS Task Control System: multi-robot dispatching, traffic management, task queueing, device integration | ||
* Payload, speed and runtime vary with actual conditions (carrier type, floor condition, task density). Floor must be flat and free of oil/dust, with grooves ≤5mm wide and slopes ≤3°. Site assessment and risk assessment are recommended for special operating conditions.
Mix and match to your site conditions — up and running within 10 minutes of deployment.
Layer QR-code stations, reflectors or magnetic tape on top of laser SLAM — matched to your site for maximum positioning reliability.
Auto-recharge on low battery plus fast manual swap; combined with TCS scheduling for 7×24 uninterrupted operation.
Standard plates fit common racks and trolleys; custom plate sizes, locating pins and modular multi-compartment racks available.
Interconnects with elevators, automatic doors and production equipment for automatic floor-to-floor travel — a fully unmanned flow.
Map management, task release, real-time monitoring and analytics with open APIs for WMS/MES/ERP. Public cloud, private deployment, or fully offline.
Global-map dynamic navigation with near-zero-cost remote deployment — map it and go, running within 10 minutes.
